LYONS TOOL & ENGINEERING, INC.
INNOVATION
FOUNDER
William A. Lyons
1913-1991
Lyons Tool & Engineering, Inc. was established in 1960 to provide manufacturing facilities for the Lyons Universal Chuck, a patented device for holding and checking Hypoid Ring Gears during the automotive production cycle.
CURRENT LTE DESIGNS MANUFACTURED TO SUPPORT OUR CUSTOMERS' PRODUCTION CAPABILITIES
ARBOR RUNOUT TEST STAND
The Arbor Runout Test Stand is LTE-designed and manufactured to accept customer-specific modular arbors. Its design is universal, allowing arbor connections to have a wide range of capabilities. The test stand's quiet pneumatic operation is perfect for a lab environment but robust enough to accommodate plant floor usage.
ROLLOVER TEAR DOWN FIXTURE MOUNTED ON CUSTOM BUILT BENCH
The Tear Down Fixture is designed and built to safely manipulate the product in order to evaluate, disassemble, and reassemble from several directions.
RING GEAR TOOTH SIZE & RUNOUT GAUGE
PINION TOOTH SIZE & RUNOUT GAUGE

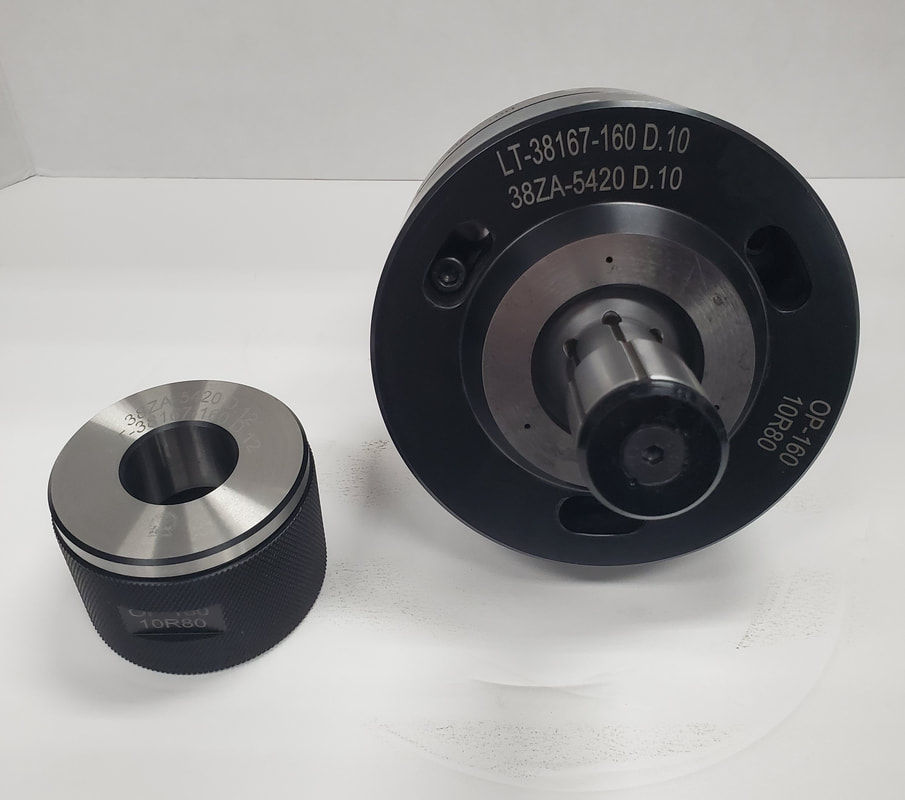

PULL BACK CHUCK CHANGEOVER FROM 10R80 TO 10R60
ARBOR RACK
Designed and Manufactured by Lyons Tool & Engineering.
140 ROLL QUENCH DRIVER ASSEMBLY
